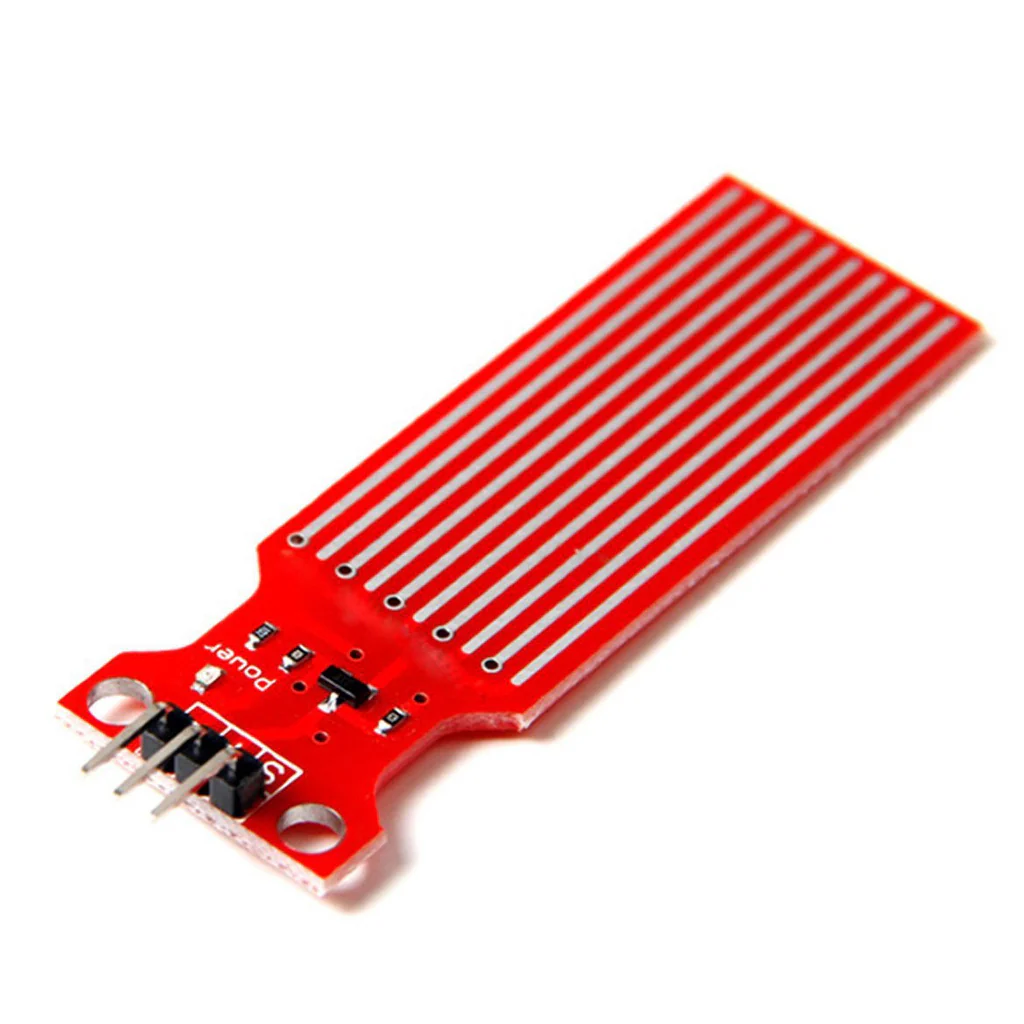

Water Detection Sensor Module
Water detection sensor is used to detect water leak, water level or rains. This is obtained by having a series of parallel wires exposed traces. The sensor traces have a weak pull-up resistor of 1 MΩ. The resistor will pull the sensor trace value high until a drop of water shorts the sensor trace to the grounded trace.
The analog signal output can be read directly to arduino
EGP40.00
Specifications
- Operating voltage: 5V
- Operating current: less than 20mA
- Sensor Type: Analog
- Detection Area: 40mmx16mm
- Product Dimensions: 62mmx20mmx8mm
